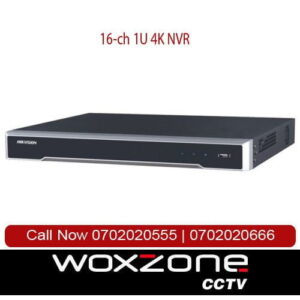

DS-7616NI-Q1 16CH 1U 4K NVR in Sri Lanka

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 4-ch @ 1080p decoding capacity
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Compatible with third-party network cameras
Compare
Category:
  • Video And Audio
  • IP Video Input16-ch,Up to 8 MP resolution
  • Incoming/Outgoing Bandwidth80 Mbps ,160 Mbps
  • Video Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Capability1-ch @ 8 MP / 4-ch @ 1080p
  • Network
  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Hard Disk
  • SATA2 SATA interfaces
  • CapacityUp to 6TB capacity for each disk
  • External Interface
  • USB Interface2 × USB 2.0
  • General
  • Power Supply12 VDC,≤ 40W
  • Consumption (Without HDD)≤ 15W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10 to 90 %
  • Dimensions (W × D × H)385 × 315 × 52 mm (15.2″× 12.4″ × 2.0″)
  • Weight (Without Hard Disk)≤ 1.8 kg (4.0 lb)
  • Chassis1U chassis



DS-7616NI-Q1

NVR
