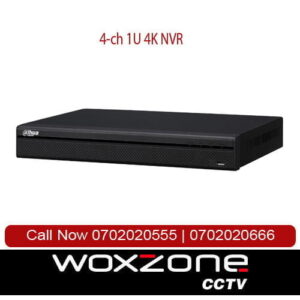

DS-7604NI-Q1 4CH 1U 4K NVR in Sri Lanka
- Up to 4 channel IP cameras can be connected
- Supports decoding H.265+/H.265/H.264+/H.264 video formats
- Up to 4K high-definition live view, storage and playback
- Up to 4-ch @ 1080p decoding capacity
- Up to 40 Mbps high incoming bandwidth ensures IP cameras can be connected
- Simultaneous HDMI and VGA output of the same video stream1 HDD for continuous video recording
- Compatible with third-party network cameras
- Video And Audio
- IP Video Input4-ch Up to 8 MP resolution
- Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Video Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Capability1-ch @ 8 MP / 4-ch @ 1080p
- Network
- Incoming/Outgoing Bandwidth40 Mbps 80 Mbps
- Hard Disk
- SATA1 SATA interface
- CapacityUp to 6TB capacity for each disk
- External Interface
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB Interface2 × USB 2.0
- Video/Audio Output
- VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Network Management
- Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- General
- Power≤ 18W
- Power Supply12 VDC
- Consumption (Without HDD)≤ 10 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Dimensions (W × D × H)315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
- Chassis1U chassis
- Video And Audio
- IP Video Input4-ch Up to 8 MP resolution
- Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Video Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Capability1-ch @ 8 MP / 4-ch @ 1080p
- Network
- Incoming/Outgoing Bandwidth40 Mbps 80 Mbps
- Hard Disk
- SATA1 SATA interface
- CapacityUp to 6TB capacity for each disk
- External Interface
- Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- USB Interface2 × USB 2.0
- Video/Audio Output
- VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Network Management
- Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- General
- Power≤ 18W
- Power Supply12 VDC
- Consumption (Without HDD)≤ 10 W
- Working Temperature-10 to +55º C (+14 to +131º F)
- Working Humidity10 to 90 %
- Dimensions (W × D × H)315 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight (Without Hard Disk)≤ 1 kg (2.2 lb)
- Chassis1U chassis
DS-7604NI-Q1
