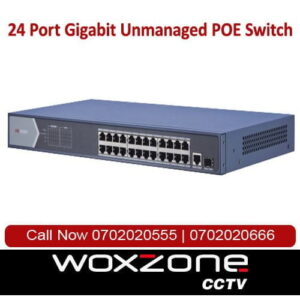

DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch in Sri Lanka
- 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
- Network Parameters
- Port Number24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table8 K
- Switching Capacity52 Gbps
- Packet Forwarding Rate38.688 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinEthernet cable 1/2/3/6 provide power supply.
- PoE PortPorts 1 to 24
- Max. Port Power30 W
- PoE Power Pudget225 W
- Max. Power Consumption250 W
- General
- ShellMetal material with a fan equipped.
- Gross Weight4.120 kg (9.08 lb)
- Net Weight2.920 kg (6.44 lb)
- Dimension (L × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Humidity5% to 95% (no condensation)
- Power Supply100 to 240 VAC, 50/60 Hz, 4 A (Max)
- Power Consumption In Idle25 W
