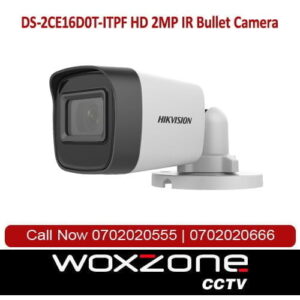

DS-2CE16D0T-ITPF HD 2MP IR Bullet Camera in Sri Lanka
- 5 MP bullet camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS);
Camera
- Lens2.8 mm, 3.6 mm, 6 mm fixed lens
- Horizontal Field Of View85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
- Lens MountM12
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
- Image Sensor5 MP CMOS image sensor
- Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Resolution2560 (H) × 1944 (V)
- Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Menu
- AGCSupport
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceATW/MWB
- Backlight CompensationSupport
- DWDR (Digital Wide Dynamic Range)Support
- LanguageEnglish
- FunctionsBrightness, Sharpness, DNR , Mirror, Smart IR
- Interface
- Video Output1 HD analog output
- Switch ButtonTVI/AHD/CVI/CVBS
General
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Power Supply12 VDC ±25%
- Power ConsumptionMax. 4.3 W
- Protection LevelIP67
- MaterialPlastic
- IR RangeUp to 20 m
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions58 mm × 61 mm × 163 mm (2.28″ × 2.40″ × 6.42″)
- WeightApprox. 350 g (0.77 lb.)
DS-2CE16D0T-ITPF
