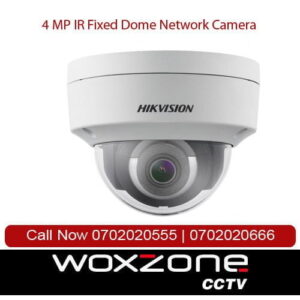

Camera
Image Sensor 1/3″ Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355°
Lens
Focal length 2.8/4/6/8 mm
Aperture F1.6
Focus Fixed
FOV
2.8 mm, horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
6 mm, horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
8 mm, horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2688 × 1520
Main Stream
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR/HLC
Image Setting Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client
software or web browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.80
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:
IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view:
Chrome 45.0+, Firefox 52.0+
Interface
Audio (-S) 1 input (line in/mic in), 1 output (line out), terminal block, mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm (-S) 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output No
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Reset Button Yes
Audio (-S)
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Protection Level IP67, IK10
Material Camera body: metal, bubble: plastic
Dimensions
Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
Package: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
Weight Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 820 g (1.8 lb.)
