Camera
Image Sensor 1/4’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) , 0.028Lux @ (F2.0, AGC ON) , 0 Lux with IR
Shutter Speed 1/3 s ~ 1/100,000 s
Lens 4mm@ F2.0, Angle of view: 73.1° (6/8/12mm optional)
Lens Mount M12
Day & Night IR cut filter with auto switch
WDR Digital WDR
Compression Standard
Video Compression H.264/MJPEG
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Max. Resolution 1280 × 720
Frame Rate 50Hz: 25fps(1280 × 720)
60Hz: 30fps (1280 × 720 )
Image Enhancement BLC/3D DNR
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web
browser
Network
Alarm Trigger Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filtering, anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface 1 RJ45 10M/100M Ethernet interface
General
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af) for non”-D”
Power Consumption I3: 3.5W MAX; I5: 4.5W MAX
Protection Level IP66
IR Range I3: 30m; I5: 50m
Dimensions 147.49×78.2×92.87mm
Weight 350g

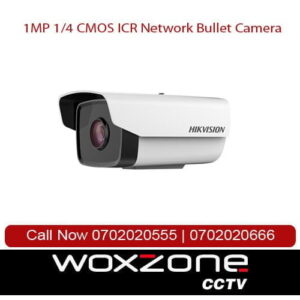

DS-2CD1201-I5
